80V 1200W Pacific (Selecon)

Harnessing the unique active heat management system of the Pacific, the 80V 1200W Power System uses a purpose designed lamp producing unrivalled light output for theater applications. A slim line electronic power supply is designed to connect to a dimmer output, and is switchable between 220~240V for optimum efficiency.
Zoom : 5.5~13¡Æ, 12~28¡Æ, 14~35¡Æ,
23~50¡Æ, 45~75¡Æ
Fixed : 5¡Æ, 20 ¡Æ, 30¡Æ, 40¡Æ, 50¡Æ, 90¡Æ
 80V_1200W Pacific.pdf



Features

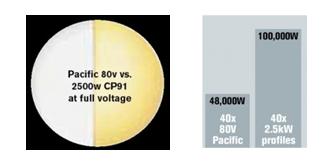

Produces a comparable level of light to conventional 2.5KW profiles
Has a higher color temperature(3,300¡ÆK), to increase whiteness of beam

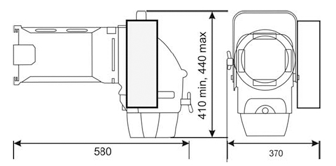

Compact size : Half the size of conventional 2.5KW profiles
Energy savings of up to 50%
Automatic disconnection of power on removal of lamp module



Accessory
M12 Suspension bolt
M8 Yoke bolt set
Heat Sink Guard
High temperature lens tube clamp knob



Specifications
80V Power Supply Weight : 3.8Kg
Max. output : 1200W
Lamp :
   Philips 6980Z, 80V 1200W
   GE OC1200, 80V 1200W
