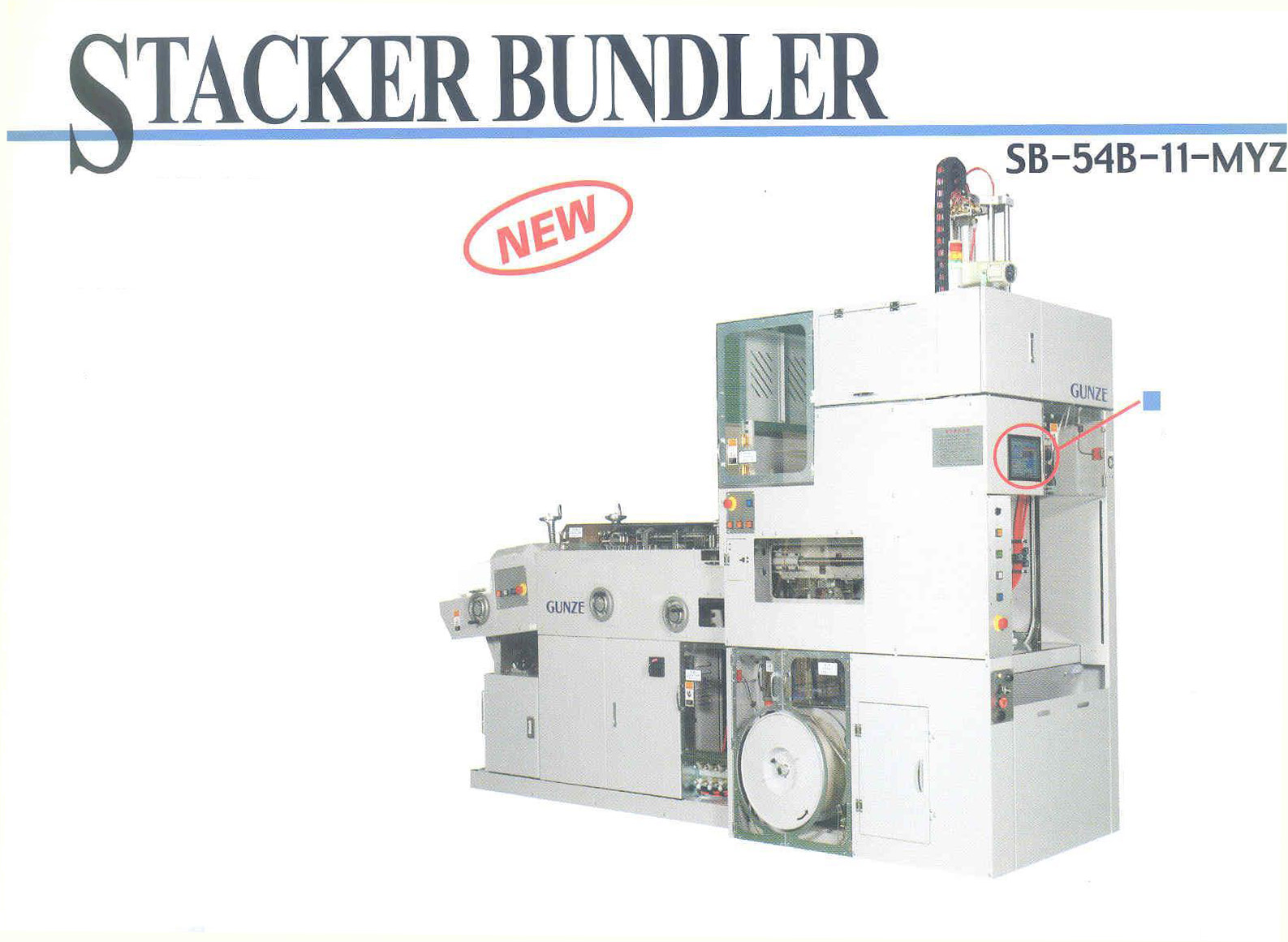

In rotary pressing line, Stacker Bundler is necessary and must-have item. Stacker Bundler’s Trouble means Line-operating rate.
Gunze has improved every equipment with analyzing data from checking whole accident-history of Stacker Bundlers from all around the country. Finally, we have succeed [Decrease of machine-stopping] and [Stability of jogging].

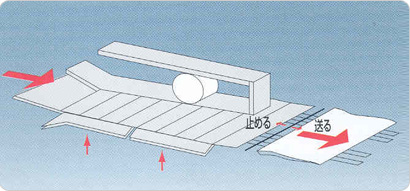

Sheet Stopper Part
In sheet stopper part, it provides smooth signatures moving without scattering signatures to improve pressing force of the conveyer belt and clear the cutting with giving height to carrier part after pressing signatures.
Low-Speed Part
In low-speed part, it stabilizes flow of signatures with slow descents by shortening distance between fork and lift. And, on low-speed descent, controlling ON/OFF of air-blower, solves the problem of signature-sticking.
High-Speed Part

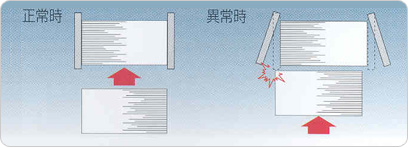

In high-speed stacking part, it doesn’t make machine stop by miss-aligned signatures with pre-test for miss-alignment, in case of detecting miss-alignment, widens receiving guide of low-speed part.
Concerned About the Environment
It stops motor of vibrator, regulater, air-blower and binder temporarily in case doesn’t supply signatures. Makes decreasing of energy consuming, noises.
Decreased approx. 30% of wires than an old type and tried to change to anti-vinyl chloride, etc. Concerned about the environment in materials
Memory Function
In case of repeating operation, it can change program easily by choosing memory numbers. Auto-plate-changing machine can change the plates automatically.
1-level Stacking from B4 sheet
Deepening inside of low-speed stacker by low-speed descent, it can provide 1-level stacking. Thick B5-size signatures can be supplied.
Easy control
Controlling is progressing more and more by using touch-panel. Simplifies control by improving displays.
Easy Changing Plate
Changing plate(B4↔B5) is very simple with [adjusting guide by handle] and [changing weight]. It cuts down your working time. |
