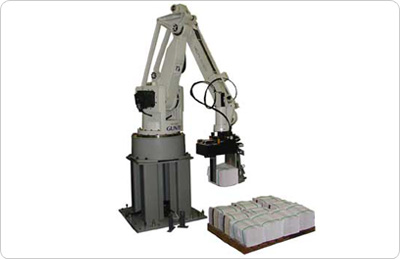

Gunze [RV series] is high-functional robot palletizer with signature-stacking program and customized.

You can choose capable weight to 100kg and 150kg by operating weight.
Wide color touch-panel
Simple controlling touch-panel by adding 300 kinds of sheet size.
Alerts in case set-up stacking level goes over the limit using display of stack-capability by measured operating height.
In case of accidental stop, homing is capable with just one button.
You can check stacking order and condition on touch panel.
You can control stacking order by just one touching.

Type EC-101(cylindrical coordinate type multi-joint) RV-100TH(cylindrical coordinate type multi-joint) RV-150TH (cylindrical coordinate type multi-joint)
Process Capacity 200 cycle/h 240 cycle/h 240 cycle/h
Body Weight 800kg 1300kg 1300kg
Board Weight 120kg(Including hand) 100kg(Including hand) 150kg(Including hand)
Electric Capacity 4KVA(Including accessory) 11KVA(Including accessory) 11KVA(Including accessory)
Electric Power 3-phaseAC200/220V/ 50/60HZ 3-phaseAC200/220V/ 50/60HZ 3-phaseAC200/220V/ 50/60HZ
Air 150LN/min 0.5MPa 100NL/min 0.5MPa 100NL/min 0.5MPa
Pellet size Standard 1100L×800W×90~140H Standard 1100L×800W×90~150H Standard 1100L×800W×90~150H
Small 950L×640W×90~140H Small 950L×640W×90~150H Small 950L×640W×90~150H
