FEATURE
Guaranteeing the high durability by robust frame construction.
Realizing the high precise collating accuracy thanks to the individual strong unit.
Equipping the quick adjustments and pre-setting systems for the user¡¯s needs.
Approaching the investigation of tool-less setting as much as possible.
Minimizing the troubles during the machine operation by taking all possible measures.

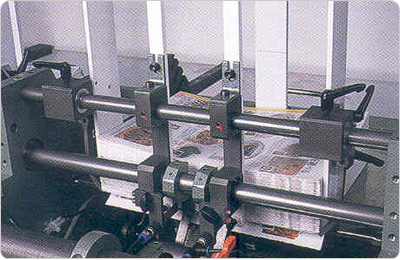

Piling Table

The signature piling table is designed to set wide for easy work.
The right side and left side guides can be set easily without use of tools.
The angle adjustable piling table for special signature is provided as an option item.

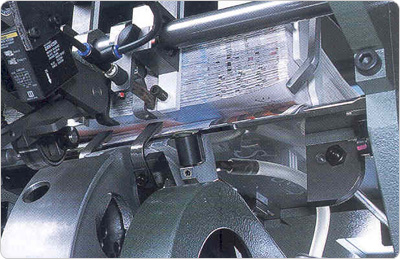

Sucking Section

It realizes to correct signature sucking that the sucker with air finger (extension & contraction type sucker) could cope with any paper conditions and the proper air blowing could also fine signature separating.
The front and side pins to prevent a double signature sucking-up adjusted without use of tools.
The double grippers can catch the signature deeply and are designed suitable for the bad signature conditions such as nature and band creases.
The gripped signature is fed right along with the drum into the forwarding section.

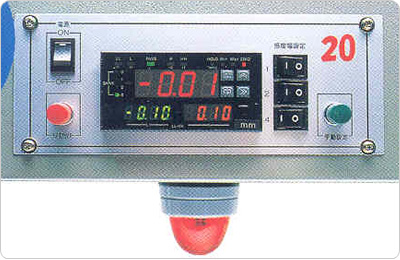

Thickness Sensor Unit

It can finish the sensor preset by passing a single signature through only once as one pass preset system.
The sensor unit could detect on even a sheet of paper and has a self-control function to adjust data every 100 signatures.
Forwarding Section
Sequential signature sucking system for first operation is provided and moderate braking function is provided to prevent break-up of signatures on an emergency stoppage.
The gatherer can be selected to meet the factory layout such as right or left stream.

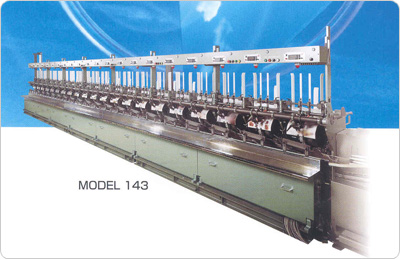

Technical data for Model 143
|
