PIEZOELECTRIC

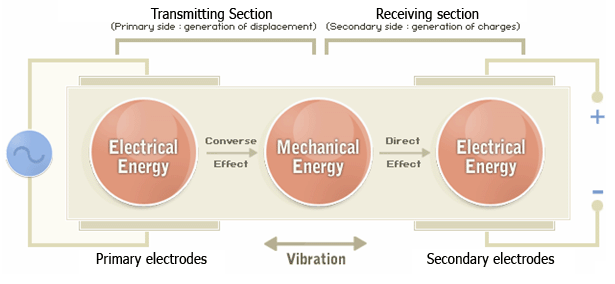

1. What is the ¡°Piezoelectric Effect¡±?
Electric input to the Primary side transmitted to the Secondary side by mechanical vibration,
generates electric output from Secondary side.
2. Characteristic.
Magnetic Transformer
Piezo-Power Transformer
Structure
Material
Iron, Ferrites
Piezoelectric ceramics
Fixture
Bobbin
Clamper
Shape
Core Vomue + Winding Volume
Core Volume Only
Performance
Voltage Gain
Turns Ratio
~ Electrode Area Ratio
Insulation
Good
Superior
Height
> 15 mm (with Bobbins)
4.5 mm( with clamper)
Magnetic Noise
High (Needs shielding)
No
Flammablity
Yes
No
3. Applications.
- 5W ~ 20W : Mobile Phone, PDA, Digital Camera, MP3, PMP, etc.
- 40W : Ultra portable PC
- 65W : LCD Monitor
- 80W : Lab top Computer
4. Product Introduction
Product
Pictures
Characteristics
5W
Input : 220Vac
Output : 5V / 1A
Size : 45.5x43.9x17.8
70W
Input : 85~265Vac 50/60Hz
Output : 20V / 3.5A
PFC input stage
Low profile : 13mm
(with case)
