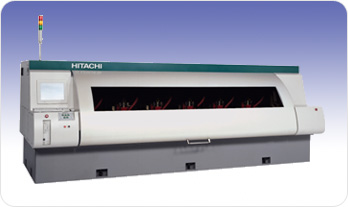

Standard configuration including high-speed(80,000min-1)spindle
Drill bit life twice as long as Hitachi's previous model in Ø0.3mm slit routing

*Additional Information

1)New Z-Axis structure
Higher-speed routing by high-power motor and high-rigidity guide new, simple Z axis for easy spindle replacement at the front
2)Spindle selection according to the hole specification 60Krpm spindle(Ball bearing) 80Krpm spindle(Air bearing) can be selected.
Model:HR08A
Bearing:Air bearing
Spded:15K~80K
Run out: <=10um

3)Functional design
Functional design by ergonomic concept Single front door enabling operator to close enough to the table to work with the spindles


4)Various Option
Auto Pin Inset Function Detectable for the cutter
diameter, 0.2mm

*Machine specifications
Model Unit NR-6H21E NR-6H210E NR-4H210E NR-2H210E
Number of stations - 6 ← 4 2
Z Axis - 6spindle/1motor 1spindle/1motor 1spindle/1motor 1spindle/1motor
Spindle spacing mm 538 ← ← ←
Router area mm 533ⅹ670(21 x 26.4inch) ← ←
ATC Number Tool/Axis 16 200 200 200
X,Y Axis positions speed m/min 50 ← ← ←
Z Axis feed rate m/min 0.101~10 ← ← ←
Z Axis retraction area m/min 25.4 ← ← ←
Positioning accuracy mm ±0.010(Hitachi measurement standard) ← ←
Spindle speed min-¹ 15,000~80,000(Option:60k) ← ←
Routing accuracy mm 0.05(Hitachi measurement standard) ← ←
Cutter size range mm 0.3~6.35(Shank Ø3.175) ← ←
Spot-facing function - None Option Option Option
CNC Equipment - H·MARK-50R ← ← ←
Power requirement - 3Phase 200V ±20V 50/60Hz ← ←
KVA 12 ← 11 10
Air requirement KPA 590~690 ← ← ←
ℓ/min 600 ← 400 200

Standard Specifications Optionals
80krpm Spindle
Tool height detector(Patented)
Vacuum shutter 		Air jet spindle(60krpm)
Pinless routing(Patented)
Custom tooling plate design
Stand-alone vacuum system
200Tools/Axis
Reference pin auto push up device
Board push up device
Diameter check function for Router bit
Break detective function for Route bit
Auto pin insert function

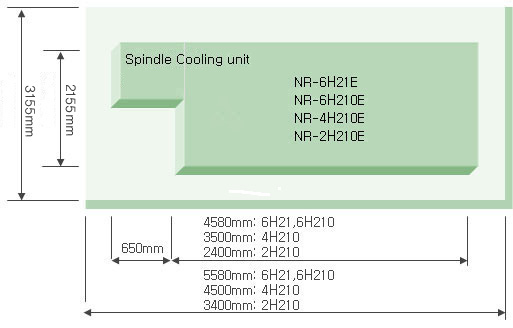

*Floor Plan
