Their extended analysis software helps substantially improve your PWB production process
High-speed scanning system. Applicable to volume production as well as precision measurement processes
HA-1AM: Capable of laser micro-via analysis.
HT-1BM: Dedicated though-hole tester.

*Additional Information

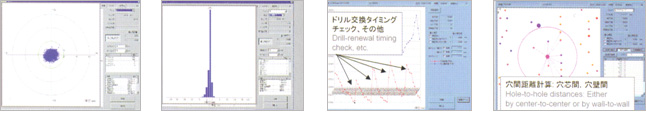

1)Analysis Programs
Position error Histogram Transition graph Searching for holes
around a selected point
Expansion and contraction Image of a hole Slot size measurement Logging data and their
statistical analysis

*Machine specifications
Item Unit HA-1AM HT-1BM
Max. PWB size mm 700 x 560mm ←
Measuring thickness mm 0.1~5.0mm ←
Measuring diameter mm 0.1~6.35[0.05: Fine mode]
Min. unit mm 0.001 ←
Accuracy mm 0.005(Hitachi measurement standard)
Lighting system   Top&Back lights Back lights
Scanning speed m/min 4~ ←
Rapid feed speed m/min XY:15, Z:5 ←
XY Position feedback mm 0.0002(linear scale)
CNC Equipment - HMARK-30H ←
Power consumption - 3 AC200V, 50Hz10%
3 AC220V, 60Hz10%
KVA 5 4.5
Air requirement KPA 500~690 ←
/min 10 ←
Ambient temperature ← [20]1[Standard temperature]

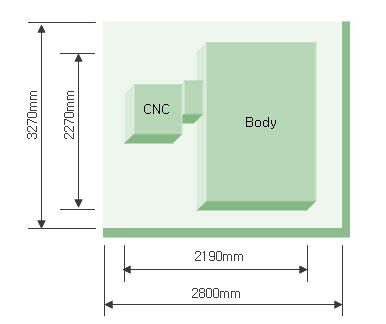

*Floor Plan
