| *Additional Information |
| |
| 1) High accuracy process is realized by strict sevo-technology accomplished with laser drilling machine |
 |
 L cut SEM image |
 |
| 2) Most up-to-date Man-Machine-Interface with Mouse Operation |
 |
|
| |
| *Machine specifications |
DE-S SERIES: Standard L/S=25㎛ correspondence
DE-H SERIES: High precision L/S=10㎛ correspondence |
|
| Item |
Unit |
LT-1A22E |
| Trimming accuracy |
% |
±1 |
| Number of trim head |
- |
1 |
| Max. trim area |
mm |
690 х 560 |
| XY positioning speed |
m/min |
50 |
| Trimming speed |
mm/sec |
~400 |
| Processing thickness |
mm |
~5 |
| Beam diameter |
mm |
appro x 0.04 |
| Laser pulse frequency |
kHz |
0.1~32 |
| Resistor range |
Ω |
0.01~40M |
| Positioning accuracy |
mm |
±0.05 |
| Working area |
mm |
80 x 80 |
| Max. speed |
m/min |
18 |
| Acceleration |
G |
2 |
| Top/bottom probe stroke |
mm |
1 |
| Laser Type |
- |
YAG Laser |
|
| |

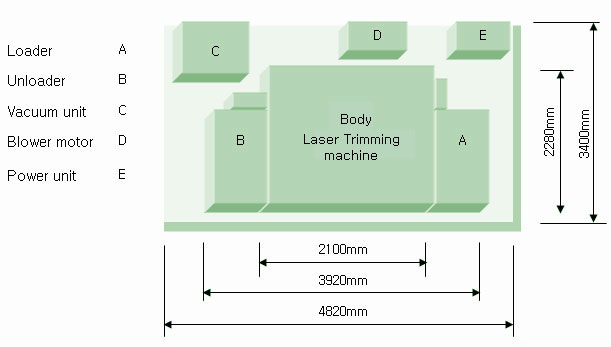

| *Floor Plan |
 |
| |
