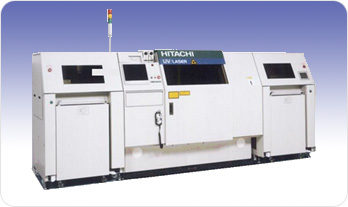

2 Panel 동시가공으로 고생산성 실현
고속, 고출력 LD여기 UV Laser Top hat beam에
의한 극소경 Resin direct 가공을 실현
고속 4Beam UV Laser가공기로 Resin direct
2,000홀/초 가공가능.




추가설명

1) 2종류의 Beam type선택이 가능
  Top-Hat Beam Gaussian Beam

2) UV Laser cross section

Top




Bottom

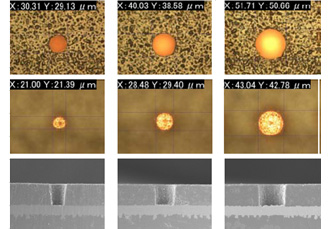

  홀경30um 홀경40um 홀경50um

사양
형식 Unit LU-2K212E LU-4K212E
최대가공Area mm 560 x 690mm x 2panel
XY축 이송속도 mm/min 50,000 ←
Beam수/Panel수 - 2/2 4/2
UV ser type - LD여기 UV Laser(LD pumped UV Laser)
Wave length 355nm
평균정격출력 W 10W at 50KHz ←
Pulse 주파수 Hz Hz 25~100Hz ←
Scan area mm 50 x 50mm ←
CNC장치 - H·MARK-50L ←
가공모드 - Punch mode ←
Trepanning mode ←

Standard Specifications Optionals
Auto Alignment compensation
Auto Focus adjustment
Conversion software
Vacuum shutter
Stand alone vacuum unit
Cooling unit
3-Edge clamp
Air dryer/filter unit
DNC/network
Top hat beam

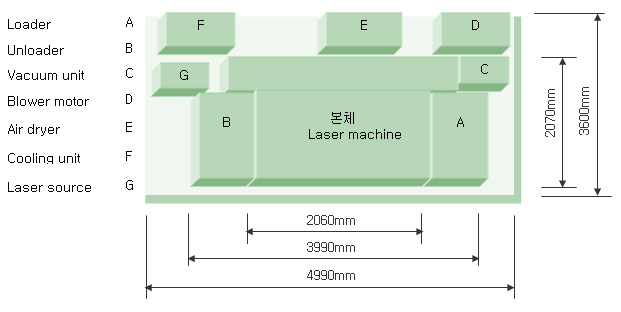

설치도(상세도면은 별도 요청해 주십시오)
