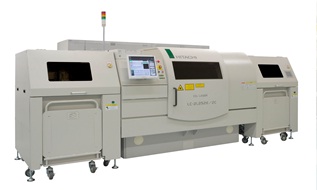

HOME 제품정보 PCB사업부 Laser Drilling Machine LC-2L Series





2Panel 동시가공으로 고생산성 실현
Hitachi original 2Beam화 기술에 의해
좌우 동일 Beam, 동일 에너지로 고품질 가공실현
기존 K Series 대비 5~10%의 생산성향상
(Hitachi via조건)


추가설명

1) 2종류의 Beam type선택이 가능
  Top-Hat Beam Gaussian Beam

2) Hitachi Original Step Pulse Drilling(일본특허)
1shot마다 가공에너지를 임의로 컨트롤 가능.
그러므로 종래의 싸이클가공에 대하여 Shot수를
줄일 수가 있으며 가공속도 향상 및 가공품질이 우수.

3) Hole Geometry of Cu direct drilling

FR-4, 60umt
Cu 12um
(Black-Oxide:Optimized)

FR-4, 60umt
Cu 9um
(Multi-Bond)
RCC, 60umt
Cu 7um
(Multi-Bond)

사양
형식 Unit LC-2L252E
최대가공Area mm 635 x 810mm x 2panel
XY축 이송속도 mm/min 50,000
Beam수/Panel수 - 2/2
CO2 Laser type - Super pulse H1500(Slab type laser)
정격출력 W 250
Pulse 주파수 Hz 2,000~10,000
Pulse 폭 usec 1~30
Scan area mm 65 x 65mm (Option: 30 x 30mm,50 x 50mm)
CNC장치 - H·MARK-50L
가공모드 - Burst mode
Cycle pulse mode
ID mode
Step pulse mode
전원전압 및 용량 - 3상 200V±20V 50/60Hz
KVA 26
Air압력 및 용량 KPA 590~690
ℓ/min 800

Standard Specifications Optionals
Top hat beam
Auto Alignment compensation
Auto Focus adjustment
Laser power meter
Pulse detector
Vacuum shutter
Automatic operation process function
DNC / network
Stand alone vacuum unit
Cooling unit
Easily attach or remove protection window
Washable protection window for fθ lens
3-Edge clamp
Stand alone vacuum unit
Air dryer/filter unit

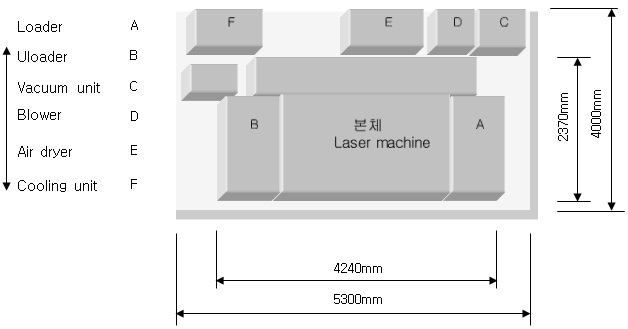

설치도(상세도면은 별도 요청해 주십시오)
