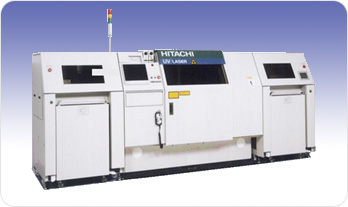

Simultaneous two-panel drilling yielding high productivity High speed, super power LD pumped UV laser Resin direct microvia drilling utilizing tophat-beam Able to process Resin direct 2,000 holes/s by means of high-speed 4 Beam UV Laser
*Additional Information
1) Able to select two beam types
Top-Hat Beam
Gaussian Beam

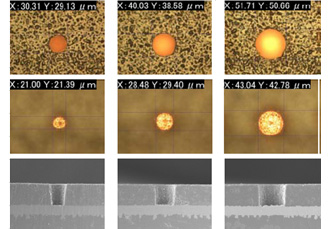

2) UV Laser cross section
Top
Bottom
Hole dia.30㎛
Hole dia.40㎛
Hole dia.50㎛

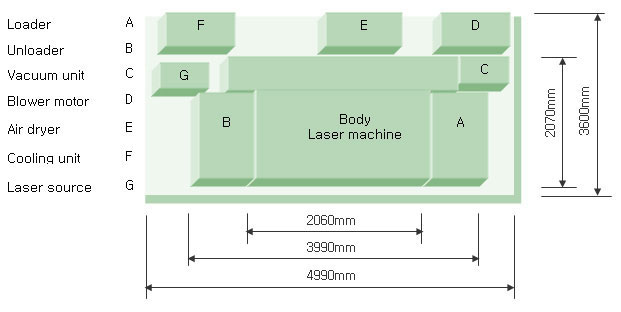

*Machine specifications
Item
Unit
LU-2K212E
LU-4K212E
Max. drill area
mm
560 x 690mm x 2panel
XY positioning speed
mm/min
50,000
←
Number of beam / panel
-
2/2
4/2
UV ser type
-
LD pumped UV Laser
Wave length 355nm
Laser rated output
W
10W at 50KHz
←
Laser pulse frequency
Hz
Hz 25~100Hz
←
Scan area
mm
50 x 50mm
←
CNC Equipment
-
H·MARK-50L
←
Drilling mode
-
Punch mode
←
Trepanning mode
←
Standard Specifications
Optionals
Auto Alignment compensation
Auto Focus adjustment
Conversion software
Vacuum shutter
Stand alone vacuum unit
Cooling unit
3-Edge clamp
Air dryer/filter unit
DNC/network
Top hat beam
Simultaneous two-panel drilling yielding high
