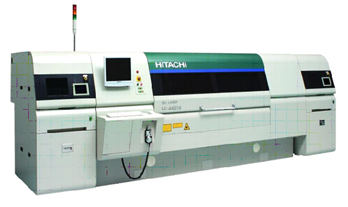

Save your energy and factory space Power consumption : 33%lower Floor space : 35%lower 190% Higher Productivity to 2-Panel machine
*Additional Information
1) Able to select two beam types
Top-Hat Beam
Gaussian Beam
2) Hitachi Original Step Pulse Drilling
Individual laser energy is controllable for optinum drilling.
High productivity is achieved by minimizing number of shots
3) Hole Geometry of Cu direct drilling
FR-4, 60umt
Cu 12um
(Black-Oxide:Optimized)
FR-4, 60umt
Cu 9um
(Multi-Bond)
RCC, 60umt
Cu 7um
(Multi-Bond)
100um
125um
150um
*Machine specifications
Model
Unit
LC-4K214E
Max. drill area
mm
535 x 690mm x 4panel
XY positioning speed
mm/min
50,000
Number of beam/panel
-
4/4
CO2 Laser type
-
Super pulse 12A(Slab type laser)
Wave length 9.4um
Laser rated output
W
200W
Laser pulse frrequency
Hz
100~6,000Hz
Pulse range
usec
1~30usec
Scan area
mm
50 x 50mm (Option: 30 x 30mm, 70 x 70mm)
CNC Equipment
-
H·MARK-50L
Drilling mode
-
Burst mode
Cycle pulse mode
Step pulse mode
Power requirment
-
3Phase 200V±20V 50/60Hz
KVA
20(Max.26)
Air requirment
KPA
590~690
ℓ/min
1,600
Standard Specifications
Optionals
Top hat beam
Auto Alignment compensation
Laser power meter
Pulse detector
Vacuum shutter
Automatic operation process function
DNC/network
Cooling unit
Easily attach or remove protection window
Washable protection window for fθ lens
3-Edge clamp
Stand alone vacuum unit
Air dryer/filter unit

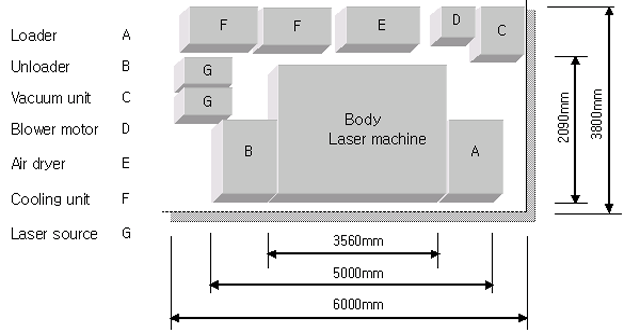

Save your energy and factory space
