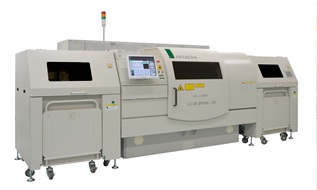

Simultaneous two-panel drilling yielding high productivity High-quality laser drilling is achieved by utilizing the identical beam with equal energy, thanks to Hitachi Original "Two Beam System." Improvement of 5~10% productivity comparing to G Series
*Additional Information
1) Able to select two beam types
Top-Hat Beam
Gaussian Beam
2) Hitachi Original Step Pulse Drilling
Individual laser energy is controllable for optinum drilling.
High productivity is achieved by minimizing number of shots

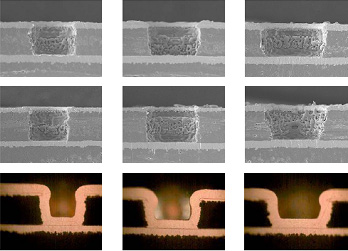

3) Hole Geometry of Cu direct drilling
FR-4, 60umt
Cu 12um
(Black-Oxide:Optimized)
FR-4, 60umt
Cu 9um
(Multi-Bond)
RCC, 60umt
Cu 7um
(Multi-Bond)

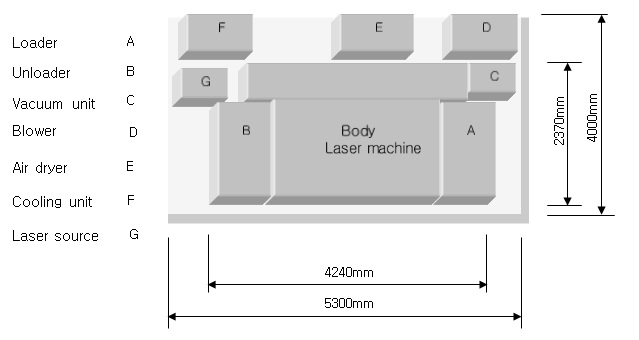

*Machine specifications
Model
Unit
LC-2L252E
Max. drill area
mm
635 x 810mm x 2panel
XY positioning speed
mm/min
50,000
Number of beam/panel
-
2/2
CO2 Laser type
-
Super pulse H1500(Slab type laser)
Laser rated output
W
250
Laser pulse frrequency
Hz
2,000~10,000
Pulse range
usec
1~30
Scan area
mm
65 x 65mm (Option: 30 x 30mm,50 x 50mm)
CNC Equipment
-
H·MARK-50L
Drilling mode
-
Burst mode
Cycle pulse mode
ID mode
Step pulse mode
Power requirement
-
3Phase 200V±20V 50/60Hz
KVA
26
Air Requirement
KPA
590~690
ℓ/min
800
Standard Specifications
Optionals
Top hat beam
Auto Alignment compensation
Auto Focus adjustment
Laser power meter
Pulse detector
Vacuum shutter
Automatic operation process function
DNC/network
Stand alone vacuum unit
Cooling unit
Easily attach or remove protection window
Washable protection window for fθ lens
3-Edge clamp
Stand alone vacuum unit
Air dryer/filter unit
Simultaneous two-panel drilling yielding high
