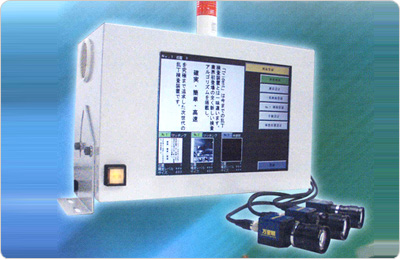

High false detection or miss-detection rate? |
 |
Superior pattern matching capability

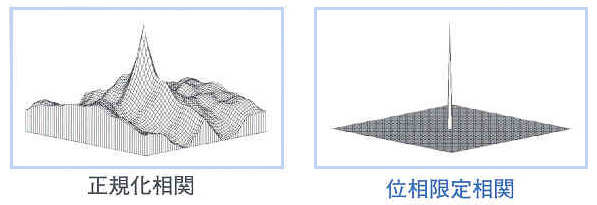

As shown in the figures below, the POC (Phase-Only-Correction) algorithm results in very sharp peak (right) when matching originally identical images, compared to a normal Fourier transformation result (left).
Horizontal and vertical or rotational displacements of the same images affect the position of the peak and not its height.
|
|
| |
 |
| |
|
Affected by ambient lights? |
 |
Not influenced by brightness.

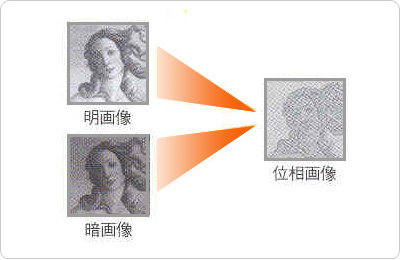

The POC algorithm only uses outlines (- phase component) of the images.
The brightness information (- frequency component) is not used. Therefore,
it is intrinsically not affected by differences in brightness. |
|
| |
 |
| |
|
Poor tolerance for signature miss-alignment? |
 |
Wide tolerance for signature miss-alignment

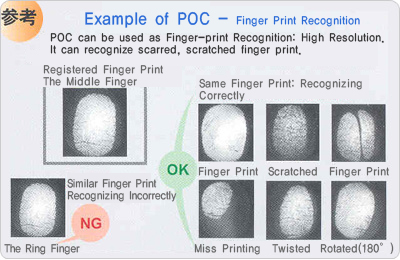

POC processes with whole checking-picture. Therefore, even though it loses some part of picture, POC can match patterns with the information of its other parts. |
|
| |
 |
| |
|
Influenced by photogravure? |
 |
Robust enough to overcome the reflection of photogravure
 |
Robust enough to overcome set-offs
 |
| |
|
Robust enough to overcome ambiguous shapes
 |
Robust enough to overcome miss-alignment
 |
|
|
| |
|
Complex setup and time-consuming teaching? |
 |
Automatic teaching and input with visuals
Trident captures images of the signature as it goes through the camera.

Capture candidate images

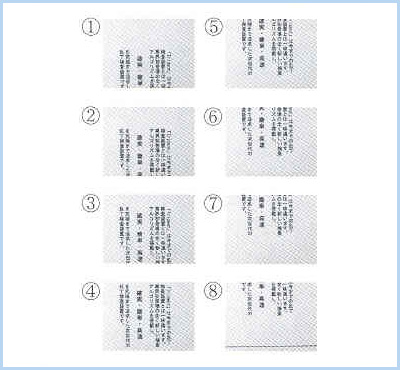

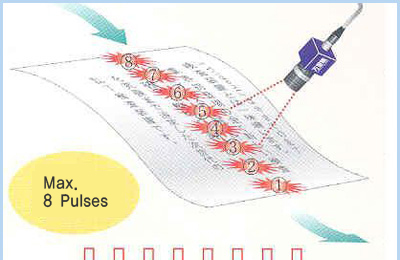

Capture up to 8 images

Reference image selection

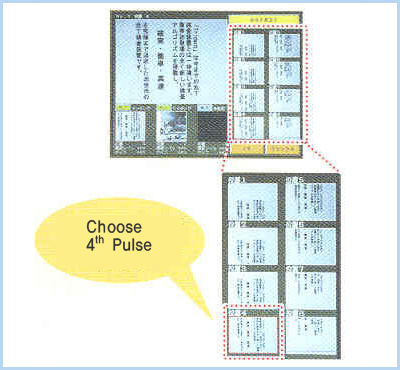

Trident automatically selects the most suitable image for the reference.

Ready to go!

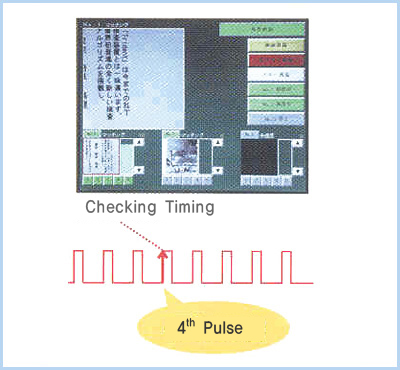

All you have to do is to touch the start target.
 |
|
| |
|
Satisfied with detection-processing time? |
 |
High-speed binding process: 36000 signature/h |
|
| |
| FEATURE |
|
| List |
Feature |
| Detecting List |
Miss-alignment · / False-detection |
| Miss-alignment Checking Method |
Text · Picture: Pattern-matching by Limited Phase Correlation Method |
| Camera Part |
Mono-chrome Digital CMOS Camera (640¡¿480 Pixel)
Electric Shutter
|
| Lighting Type |
Wight LED Light (Pulse-start type) |
| Control · Display Monitor |
LCD Monitor with Rated-capacity type Touch Panel |
| Processing Speed |
36000 sheet/h |
| Number of Stations |
No Limit |
| Allowed Range for Miss-Alignment |
XY:¡¾25mm,¥è:0~360¡Æ |
| Checking Trigger |
Encoder Signal |
| Number of Preserved NG Pictures |
RAM: Max. 64 pages (For 3 Stations)
ROM: Max. 4 pages (For 3 Stations) |
| Dimension |
Main Controller 450W¡¿350H¡¿200D
Sub Controller 390W¡¿260H¡¿225D
Camera 33W¡¿33H¡¿44D |
|
| |
