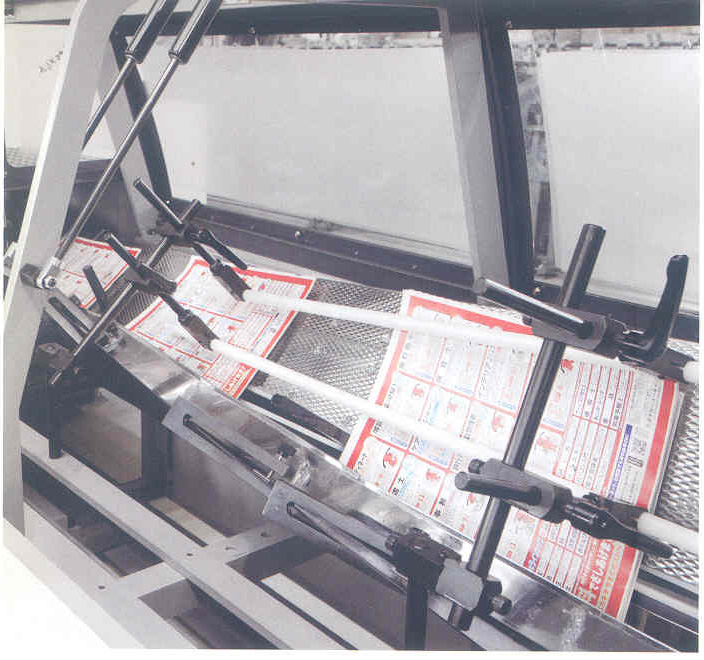

Signature Loading Section
¡á Guides for signatures can be moved easily to save setup time.
To be connected with Automatic signature loading machine,
the guides can be optionally adjusted by motors.
¡á The angle adjustable table for irregular signatures is provided as an option. |
| |
 |

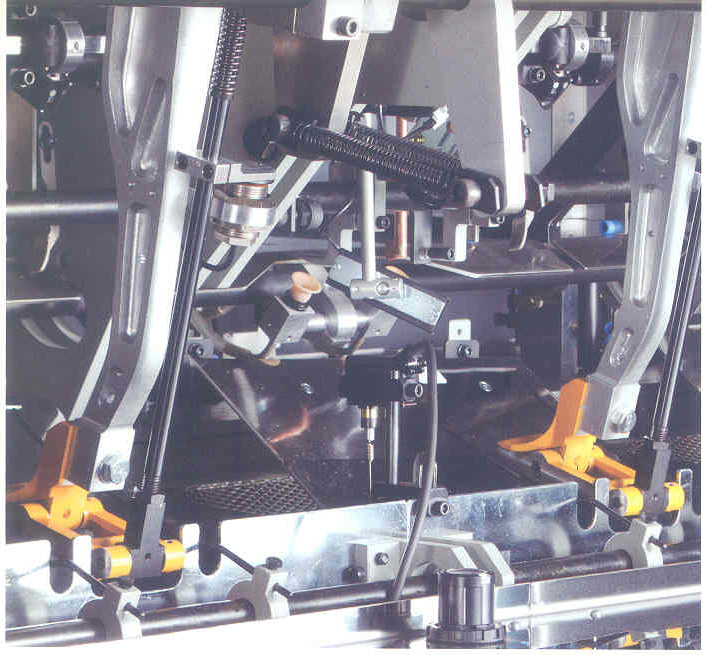

Signature Sucking Section
¡á It is possible to select Vacuum pump or Compressor for signature sucking system.
¡á Unstable feeding causes low productivity. Easy adjustments for air blowing and tool free adjustments for Anti-double feeding pins improve productivity.
Note 1 : Ejector type |
| |
 |

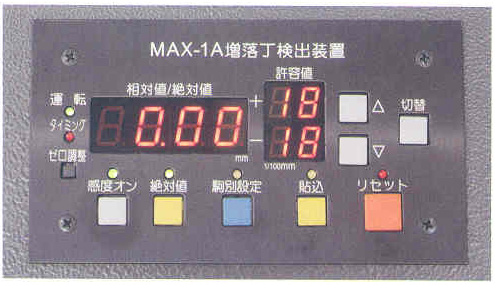

Thickness Sensor Section
¡á Presetting for the sensors is completed all at the same time.
¡á The sensor can detect even one sheet of paper. Self-adjustment function works at every 100 signatures. |
| |
 |

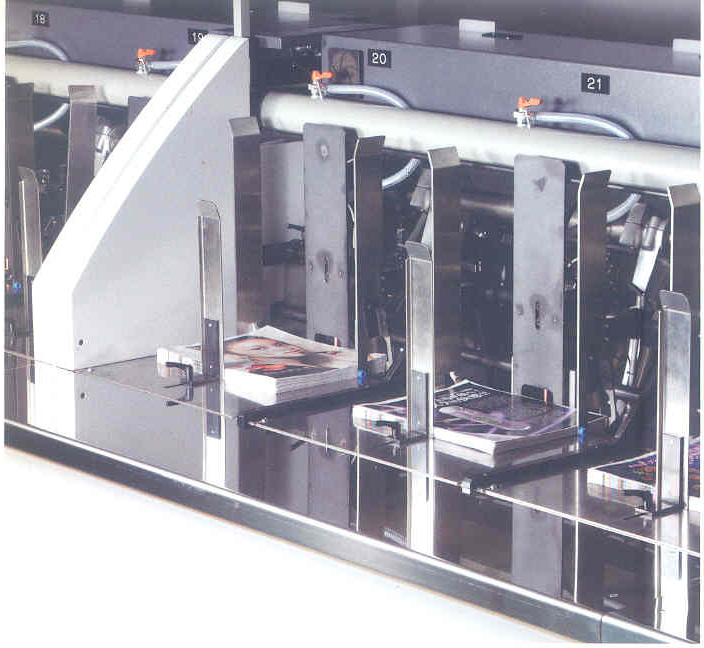

Driving Section & Delivery Section
¡á To save electricity, each module (6 feeders or 8 feeders) can run
separately.
¡á Instead of using a large sized motor to run the whole machine,
each module has its own drive for quiet working environment,
It makes it possible to reduce noise from the machine.
¡á For easy operation, shift changes from Single gathering
production to Double gathering production are operated on a touch
screen panel. The height of Signature channel can be adjusted
on a touch screen panel. The position of Signatur pushers can be
changed for irregular size signatures such as A4 landscape. |
| |
 |

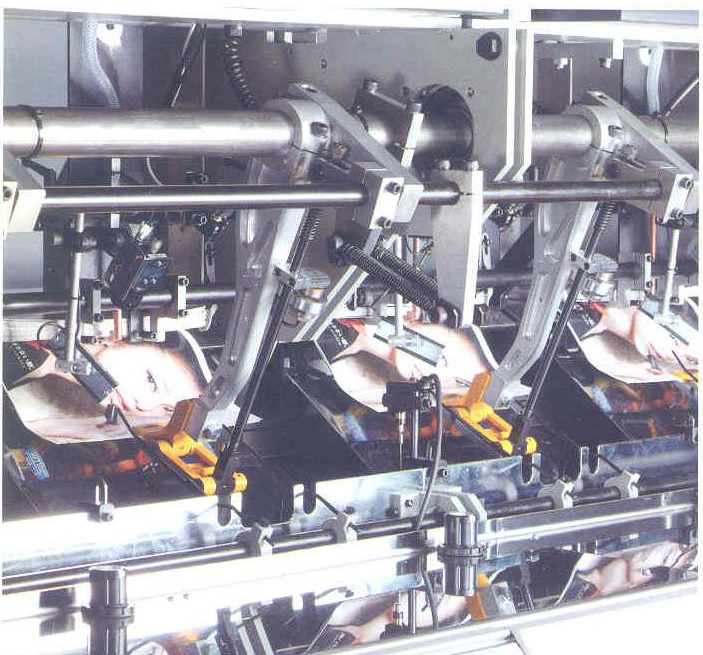

Arm Feeder Section
¡á Arm Feeder's unique motion makes it possible to feed a signature precisely.
¡á Special gripper for irregular work like book-block feeding is provided as an option
¡á Camera for Signature Detection System "Trident" can be installed in either side of the Arm feeder. |
