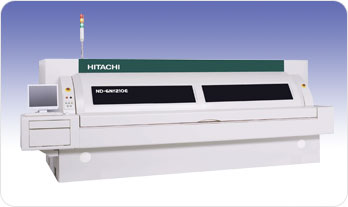

*Additional informationz
1)Reliability
Low vibration and low noise have been achieved by
high-rigidity, new type CNC device H.MARK-50D and
new servo system.
2)Spindle selection according to hole specificatons
High-performance, high-rigidity air bearing system
High-speed(160Kmin-1 or 200Kmin-1) spindles can
be selected.
3)New Z-Axis structure
Simple, new Z-axis for easy spindle replacement
4)Improved operation
Employes ergonomic, all-in-one design.
Minimized movement of operator's eyes improves
operational performance.
|
 |
|
| |
| 5)High-precision drilling example
|
6)High accuracy blind hole function
|
 |
 Spindle speed:200k
Hole diameter:0.1mm
Material:FR-5 t0.1mmx3 high
|
 |
Accuracy of hole
depth:±15μm |
|
| |

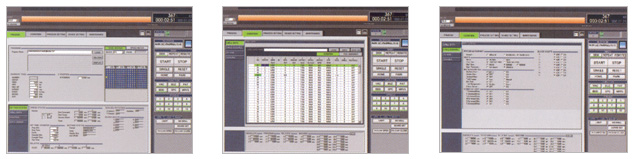

| 7)New type CNC device H.MARK-50D
|
 |
| |
| *Machine specifications |
|
| Item
|
Unit |
ND-6Y210E |
ND-6Y180E |
ND-7Y180E |
| Number of stations
|
- |
6 |
← |
7 |
| Spindle spacing
|
mm |
538 |
465 |
465 |
| Drilling Area
|
mm |
533ⅹ660 |
460ⅹ660 |
460ⅹ660 |
| ADC Number
|
Tool/Axis |
300 |
200 |
← |
| XY Axis positioning speed
|
m/min |
60 |
← |
← |
| Z Axis feed rate
|
m/min |
0.101~12.7 |
← |
← |
| Z Axis retraction rate
|
m/min |
25.4 |
← |
← |
| Positioning accuracy
|
mm |
±0.004 |
← |
← |
| Spindle speed
|
min-¹ |
20,000~125,000(Option:160,000 or 200,000) |
| Drilling accuracy
|
mm |
±0.015(Hitachi Via standard) |
| Drill size range
|
mm |
0.1~6.35(Shank Ø3.175) |
| CNC Equipment
|
- |
H·MARK-50D |
← |
← |
| Power and Capacity
|
- |
3상200V ±20V 50/60Hz |
| KVA |
15 |
← |
18 |
| Air pressure and Capacity |
KPA |
590~690 |
← |
← |
| ℓ/min |
600 |
← |
700 |
|
| |
|
| Standard Specifications |
Optionals |
Pin clamp system
Ø 0.1mm Tool height detector(Patented)
Ø 0.1mm BDD(Broken Drill bit Detector)
Automatic drill stroke adjustment |
Quick Insert Changer(QIC)
Drill bit diameter check(Type1 or 2)
160,000m/min-¹ spindle(Shank Ø3.175mm)
200,000m/min-¹ spindle(Shank Ø3.175mm)
High-precision blind hole function(new)
Vacuum shutter
Stand-alone vacuum system
Insert abrasion detector/compensation(new) |
|
| |

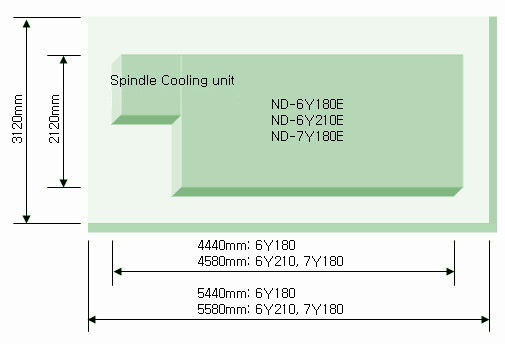

| *Floor plan |
 |
| |
