| *Additional Information
|
| 1)One CNC capable of controlling up to four single-spindle machines.
|
 |
| |
| 2) High accuracy by vision system |
 |
| |
| *Machine specifications
|
| (S21□←number of stations) |
|
| Item
|
Unit |
ND-1S211E |
| Number of stations
|
- |
1 |
| Drilling area
|
mm |
700 x 535 |
| Z Axis structure
|
- |
Independence method |
| ADC Number |
Tool/Axis |
300 |
| X,Y Axis positioning speed
|
m/min |
60 |
| Z Axis feed rate
|
m/min |
0.101~12.7 |
| Positioning accuracy
|
mm |
±0.004 |
| Spindle speed
|
min-¹ |
20,000~125,000 |
| Drilling accuracy
|
mm |
±0.018 |
| Drill size range
|
mm |
0.1~6.35(Shank Ø3.175) |
| CNC equipment
|
- |
H·MARK-50S |
(One CNC capable of controlling up to
four single-spindle machines.) |
| Power requirement
|
- |
3Phase 200V±20V 50/60Hz |
| KVA |
9 |
| Air requirement
|
KPA |
590~690 |
| ℓ/min |
200 |
|
| |

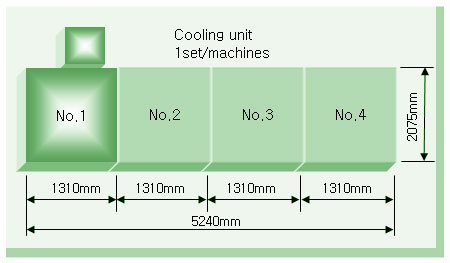

| *Floor plan
|
 |
| |
| |
| |
Fitting in your production line flexibly and enhancing your productivity.
